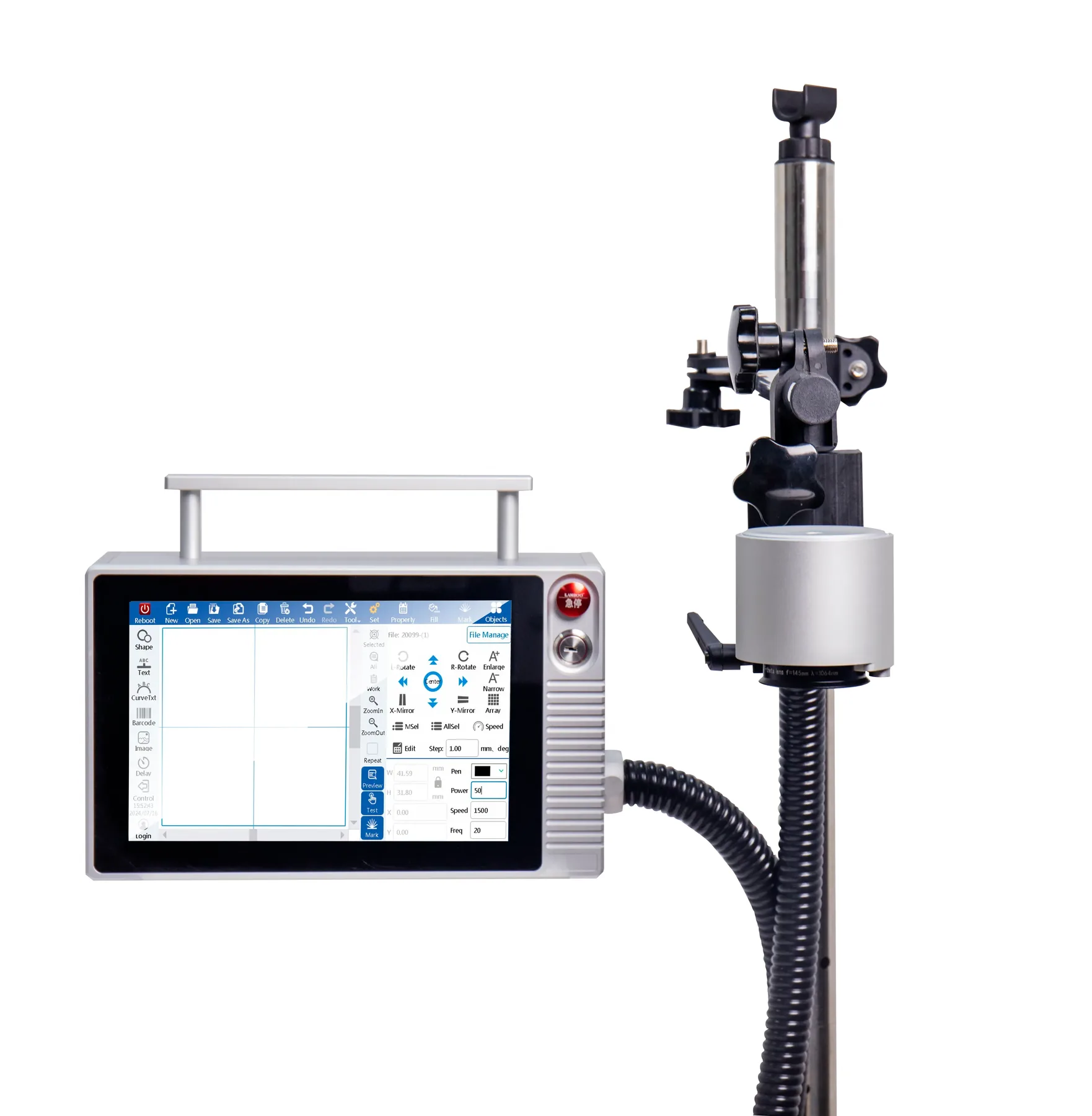

L1000 Series 18W Portable Fiber Laser
Environmental marking equipment date code green marking solution.
Model features
- 18W fiber laser marking machine has higher power and can easily and accurately mark on many materials such as aluminum, stainless steel, titanium, brass, gold, silver, etc. And hard plastics such as PE, PP, PVC, including general engineering plastics and special engineering plastics.
Technical specifications
Equipment and connectivity
- Model
- L1020F-1064F-C-IP43
- Laser type
- Fiber Laser
- Laser wavelength
- 1064nm
- Laser power
- 18W
- Positioning method
- Automatic red light positioning, focusing, preview
- Marking speed
- Depends on the size and complexity of the surface material and the marking content
- Number of print lines
- Unlimited
- Character height
- from 0.6 mm up to the marking-field size
- Interface languages
- English, Simplified Chinese, Traditional Chinese, Korean, Japanese, Russian, Spanish, Persian and other languages.
- Supported graphic formats
- JPG、BMP、PNG、PLT、DXF、DOT.etc.
- Other Data Formats
- Support a variety of variable formats (date, time, serial number, random number, VIN code, file data,communication receiving data, scanning gun data, etc,), support one-dimensional code and two-dimensional code, arc text, etc
- Marking field
- Standard(100*100)，optional(30*30)/(50*50)
- Galvanometer scanner
- High-precision 2D digital scanning system
- Controller
- 10.1-inch color display,industrial touch screen
- Operating system
- Embedded Linux security operating system
- Cooling system
- Air cooling
- Laser-unit dimensions
- 342*105.2*223.6mm(including bracket)
- Ingress protection
- IP43
- Product speed monitoring
- Support AB phase encoder
- Operator interface
- Photoelectric signal, encoder signal, alarm signal, /0 (NPN, PNP, switch type sensor), RS232 communication, etc.
- Power supply
- 100V-240V/50–60HZ
- Power consumption
- ≤150W
- Enclosure material
- Aluminum alloy
- Permitted temperature and humidity
- External temperature 0’C-45°C Humidity <95%; non-condensing; no vibration
- Rated laser-source life
- reach up to 100,000 hours
- Packaging dimensions
- 640*400*310mm
- Gross weight
- 11.3kg
