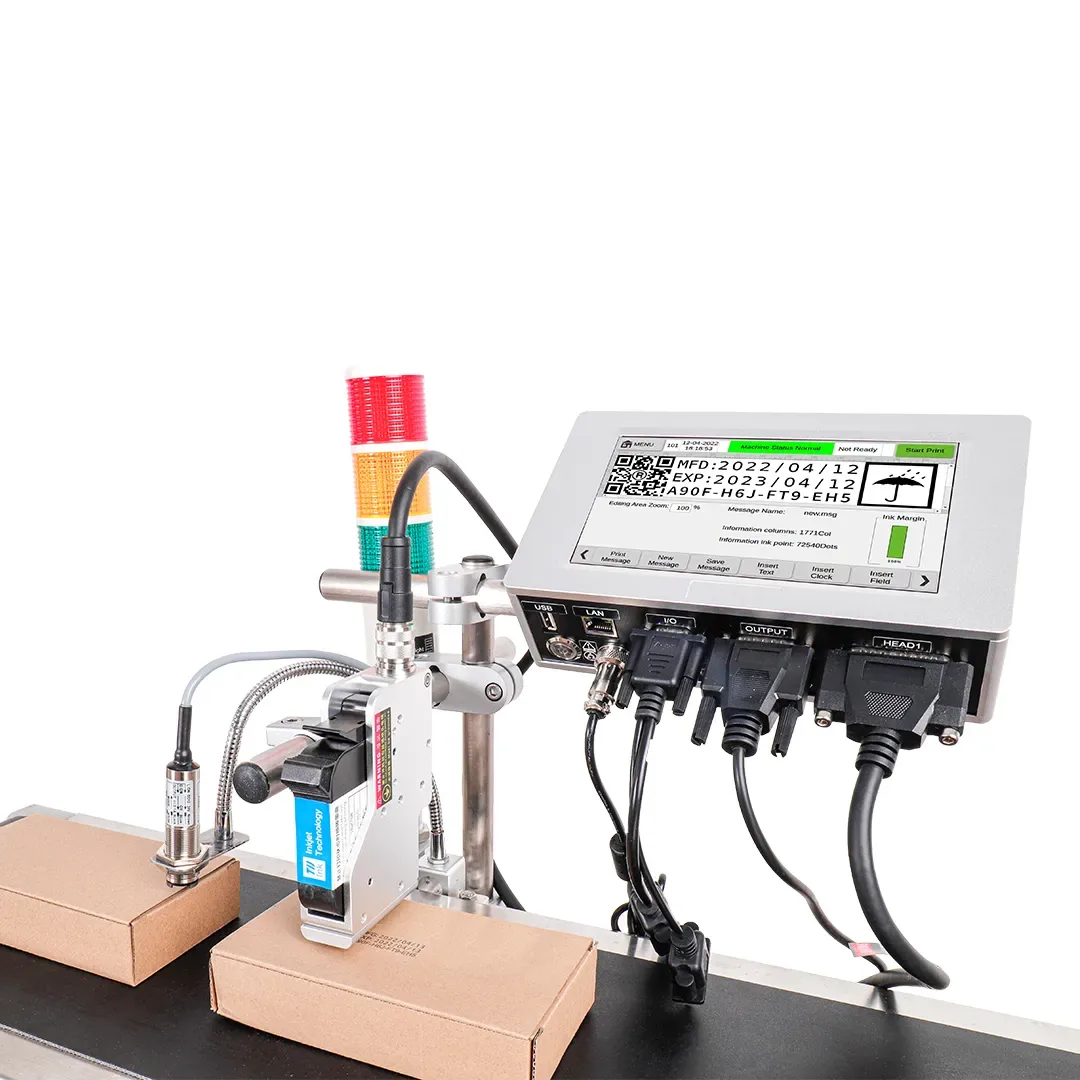

T290E Automatic Batch Coding Machine
TIJ Dual Printheads: Pro Hardware & Smart Software for Reliability.
Model features
- GS1 DataMatrix
- Network remote centralized management
- Production line alarm light control
- Calculate printing costs in real time
- Wireless keyboard and mouse control
- Anti-counterfeiting trace data printing
- Printing speed up to 203m/min
- Lighter and thinner more flexible
Technical specifications
Printing parameters
- Print resolution
- Up to 300 × 300 DPI
- Number of printheads
- 1/2
- Print height
- 1–25.4mm/1–50.8mm
- Maximum print speed
- Up to 203m/min
- Cartridge chip
- RFID non-contact chip, automatically identifies ink parameters and records ink remaining amount
- Available ink colours
- black, white, red, yellow, blue, green, invisible (UV-fluorescent), UV-curable
- Compatible ink types
- 42 ml cartridges; water-, oil- and mild-solvent-based inks. Special inks for food-packaging applications are available; compliance must be confirmed against the specific ink datasheet. Continuous ink supply is available.
- Supported print content
- Multi-language, GS1 code, dynamic traceability R codes, barcodes, graphics, serial numbers, dates, shifts, counters, variable databases, etc
- Printable materials
- carton and paper, plastic, metal and sheet materials, pipes, stone, wires and cables, electronic components, automotive components, industrial chemical packaging, pharmaceutical packaging, food packaging, gift packaging.
Equipment and connectivity
- Operating system
- Embedded Linux operating system
- Communication interfaces
- USB, RS232, TCP/IP net port
- Extended control signals
- product sensor, encoder, alarm output, printhead port, external serial-number control, external message selection, print inversion and reversal
- Printhead
- Separate printhead installation, optional dual printheads can be spliced or used separately
- Enclosure material
- Industrial grade standard protective body (aerospace grade aluminum, industrial-grade stainless steel)
- Operating environment
- Temperature 0–45℃/Humidity 30–70%Rh
- Hardware platform
- Cortex-A7 1.2GHz dual-core processor, FPGA algorithm acceleration chipset
- Dimensions
- Controller: 209 × 122.5 × 61mm；Printhead: 114 × 108 × 54.3mm
- Interface languages
- Supports more than 40 national and regional languages (Chinese/English/Arabic/Russian/French/Vietnamese/Korean, etc.)
