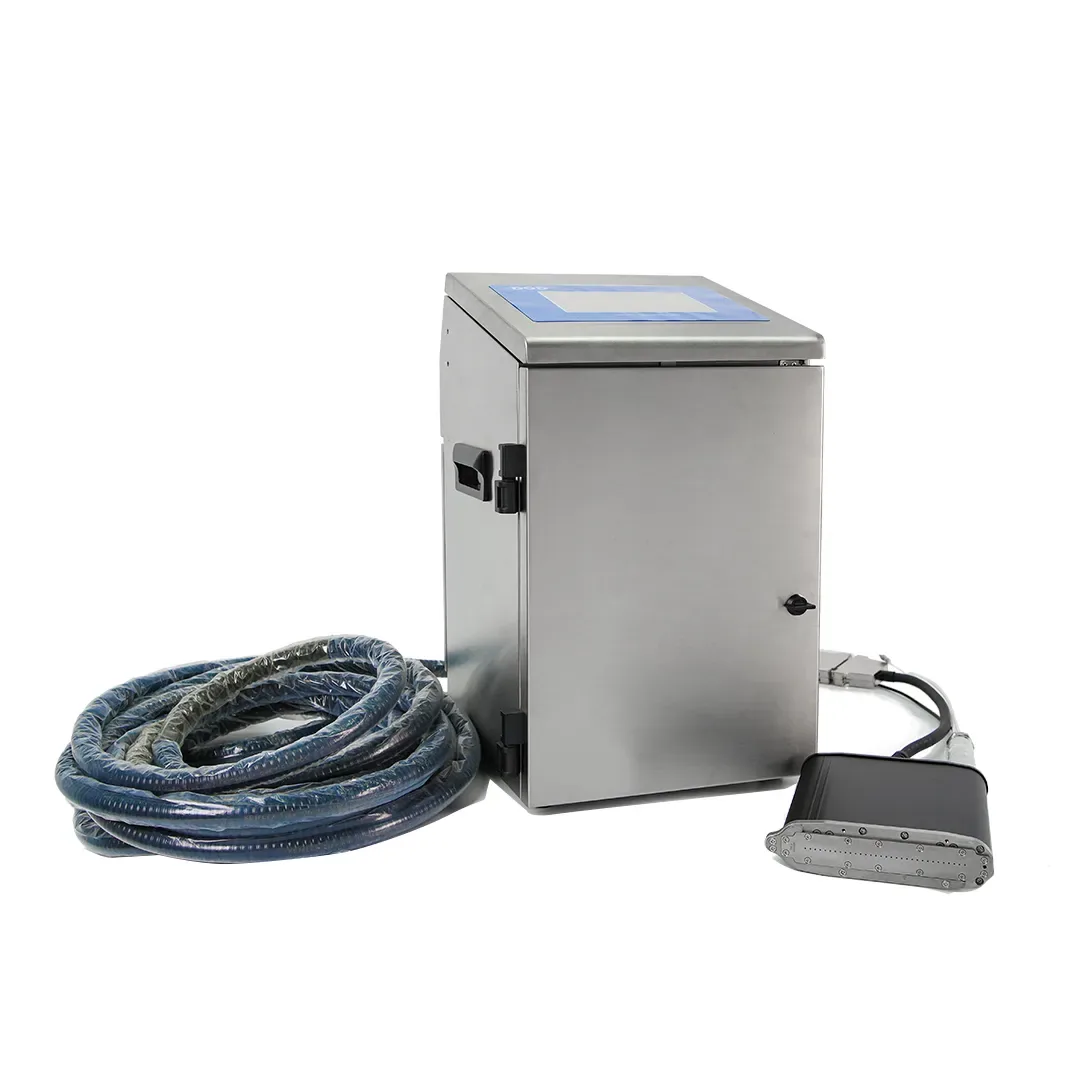

D130 Series DOD Large Character Inkjet Printer
Highly reliable Drop-On-Demand inkjet solenoid valve technology.
Model features
- D130 series large character inkjet printer adopts highly reliable Drop - On - Demand inkjet solenoid valve technology.
- Reliable, strong and durable performance can meet the needs of various industrial coding.
- The printer can work normally in a variety of harsh environments, such as dusty, wet, vibration environments.
- The high precision technology makes reliable performance and minimal maintenance.
Technical specifications
Equipment and connectivity
- Communication interfaces
- Network port, USB, RS232
- Interface languages
- Support more than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Japanese, Spanish, Italian, etc.)
- Power supply
- Input 100–240V AC
- Enclosure material
- 304 stainless steel
- Ingress protection
- IP65
- Operating system
- Embedded Linux secure operating system
- Display
- 7-inch color display, industrial touch screen
- Rated power
- 120W
- Dimensions
- 297mmX309.37mmX502.46mm(length*width*height)
- Operating environment
- Temperature0–45C/Humidity 30–70% Rh
- Net weight
- 16kg
- External inputs and outputs
- product sensor, encoder, alarm output
- Certification
- CE,ROHS, EAC
Printing parameters
- Printhead conduit length
- 3m/6m
- Number of print lines
- 1–4 lines
- Counters
- 24 independent counters
- Available ink colours
- black, white, red, yellow, blue, green, invisible (UV-fluorescent)
- Compatible ink types
- Ketone-based,water-based,alcohol-based,acetone -based,pigment-based
- Nozzle diameter
- 80u、120u、150u、180u
- Print height
- 7 dots:5–28mm 16 dots:5–64mm 32 dots:5–128mm
- Print distance
- 3–30mm
- Maximum print speed
- 63m/min
- Font
- 5 × 6L 7 × 6L 7 × 10L 9 × 8L 9 × 11L 11 × 11L 12 × 12L 16 × 16L 24 × 24L 32 × 32L 11 × 11B 12 × 12B 16 × 16B 24 × 24B 32 × 32B
- Printable materials
- Porous and non-porous surfaces: carton and paper, plastic, metal and sheet materials, pipes, stone, glass, electronic components, automotive components, industrial chemical packaging.
- Supported print content
- Text, time, date, pattern, shift, serial number, dynamic barcode/OR code, dynamic serial port data, dynamic database (other content can be added according to needs)
