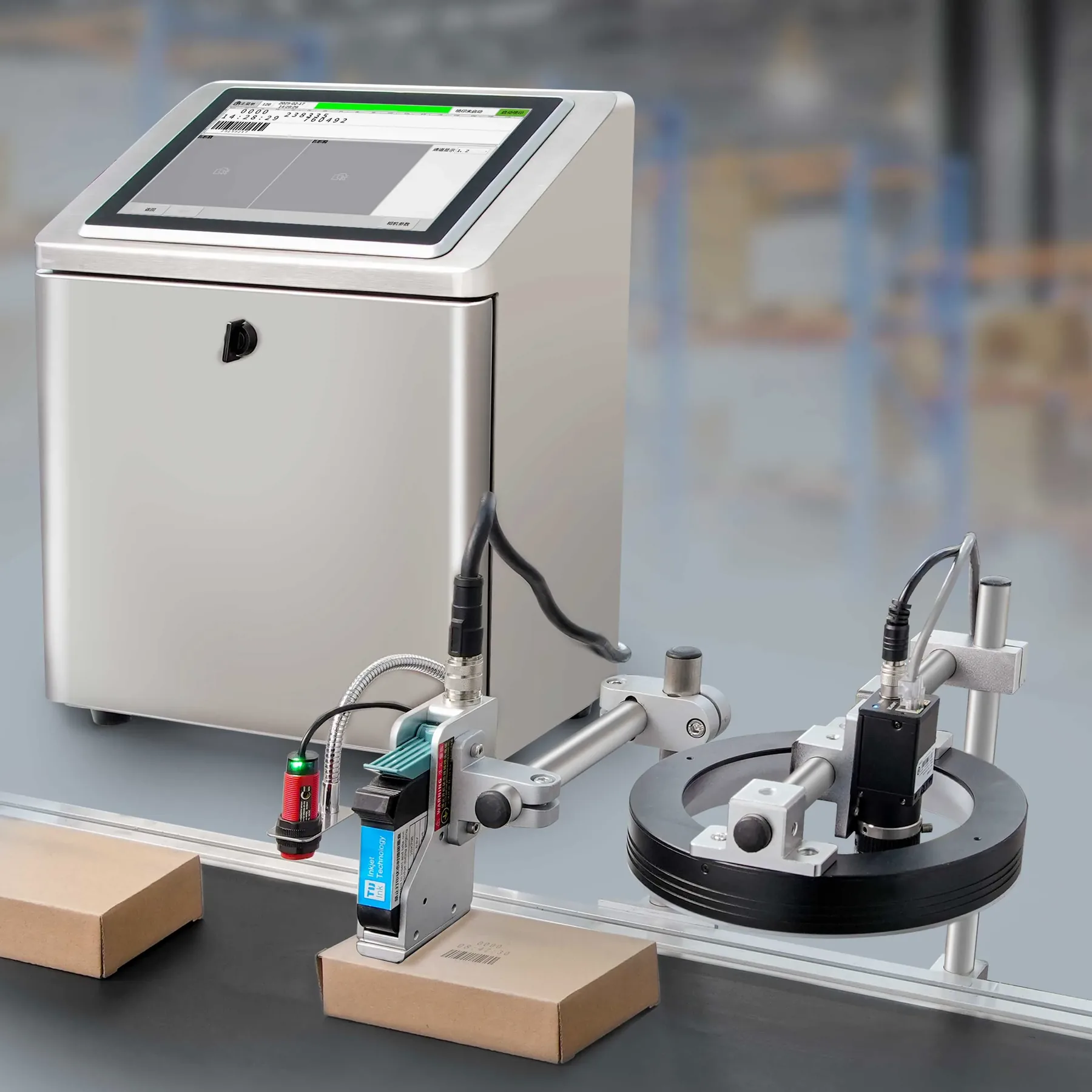

T2000V Visual Inkjet Printer All-in-One Machine

Fuses machine vision and inkjet printing for auto, accurate product ID & HD coding.

Model features

Combines deep-learning visual recognition with precision inkjet printing for real-time product identification and positioning
Automates the entire flow from detection to printing, reducing labor costs and adapting to product changes without manual input
Easily integrates into existing lines, supporting future function expansion to meet evolving production needs
Delivers sharp, clear printing suitable for dynamic codes in food, pharmaceutical, and regulatory applications
Increases production efficiency while minimizing operational and material costs through automation and smart control

Print resolution: 150dpi low resolution and 300dpi high resolution (optional), adjustable printing grayscale 1–6 levels
Number of printheads: 1/2
Print height: 1–25.4mm (the best quality distance between the nozzle and the printing surface is 1–2mm)
Maximum print speed: Up to 406m/min
Cartridge chip: RFID non - contact chip, automatic identification of ink parameters and recording of ink balance
Available ink colours: black, white, red, yellow, blue, green, invisible (UV-fluorescent), UV-curable
Compatible ink types: 42 ml cartridges; water-, oil- and mild-solvent-based inks. Special inks for food-packaging applications are available; compliance must be confirmed against the specific ink datasheet. Continuous ink supply is available.
Supported print content: Multi - language characters/dynamic traceability/QR code/barcode/graphics/serial number/date/count/variable database/network serial port real - time/dynamic data printing
Printable materials: Carton, plastic, metal, sheet materials, pipes, stone, cable, glass, electronic components, automotive parts, industrial chemical packaging, and pharmaceutical, food and gift packaging.

Operating system: Embedded Linux operating system
Communication interfaces: USB, RS232, network port, WiFi, 4G
Printhead: Separate printhead installation, optional dual printheads can be spliced or used separately
Memory: 8GB, 4GB
External inputs and outputs: product sensor, encoder, alarm output
Power supply: Power adapter 100–240V AC input, 30V 3A DC output
Enclosure material: Industrial standard protective body (aircraft - grade aluminum)
Operating environment: Temperature 0–45°C/humidity 30–70%Rh
Hardware platform: FPGA algorithm acceleration chipset, 3 NPU core, stop - computing power, RK3588 industrial - grade high - performance CPU
Interface languages: Supports more than 40 national and regional languages (Chinese, English, Arabic, Russian, French, Vietnamese, Korean, etc.)
Recognition speed: Line speed up to 80 m/min; recognition up to 10 codes/s for a date and four-digit serial number.
Camera: Support dual - channel camera, lighting
Dimensions: Controller: 314*193.53*87.3mm, Nozzle (single): 113.6*83.1*27.3mm
Display: 1280*800 capacitive touch screen, 10.5 - inch industrial touch screen
