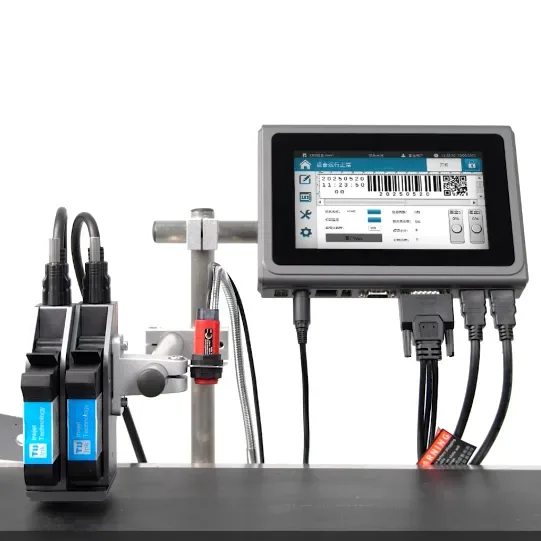

T200E Thermal Inkjet Printer
Capacitive touchscreen, and robust build for efficient industrial use.
Model features
- Interactive design upgrade, high-definition intelligent control
- Capacitive touch screen, external SD card expansion
- Gradual authority control, cost optimization
- Lightweight and sturdy body, suitable for harsh environments
Technical specifications
Printing parameters
- Printhead technology
- TIJ 2.5 thermal inkjet printhead
- Print resolution
- 150dpi low resolution and 300dpi high resolution optional, maximum speed 60m/min, adjustable printing grayscale 1–6 levels
- Print height
- Minimum printing 1mm, maximum printing height 12.7mm (the best quality distance between the nozzle and the printing surface is 1–2mm)
- Supported print content
- Multilingual characters/dynamic traceability QR code/barcode/graphics/serial number/date/counter/variable database/network serial port real-time dynamic data printing...
- Printable materials
- Carton, plastic, metal, sheet materials, pipes, stone, cable, glass, electronic components, automotive parts, industrial chemical packaging, and pharmaceutical, food and gift packaging.
- Compatible ink types
- 42 ml cartridges; water-, oil- and mild-solvent-based inks. Special inks for food-packaging applications are available; compliance must be confirmed against the specific ink datasheet. Continuous ink supply is available.
- Available ink colours
- black, white, red, yellow, blue, green, invisible (UV-fluorescent), UV-curable
- Cartridge chip
- RFID contactless chip, automatic identification of ink parameters and recording of ink remaining
Equipment and connectivity
- Operating system
- Embedded Linux operating system
- Hardware platform
- Cortex-A7 1.2GHz dual-core processor, FPGA algorithm acceleration chipset
- Communication interfaces
- USB, RS232, TCP/IP network interface
- External inputs and outputs
- product sensor, encoder, alarm output, print inversion and reversal, Ethernet
- Input method
- Support keyboard multi-language input
- User management
- Administrator account authority management, authorization management
- Hard disk expansion
- SD card hard disk expansion
- Power supply
- Power adapter 100–240V AC input, 24V 2.75A DC output
- Enclosure material
- Industrial standard protective body (aircraft grade aluminum)
- Operating environment
- Temperature 0–45°c/humidity 30–70%Rh
- Dimensions
- 128mm*87mm*27mm
