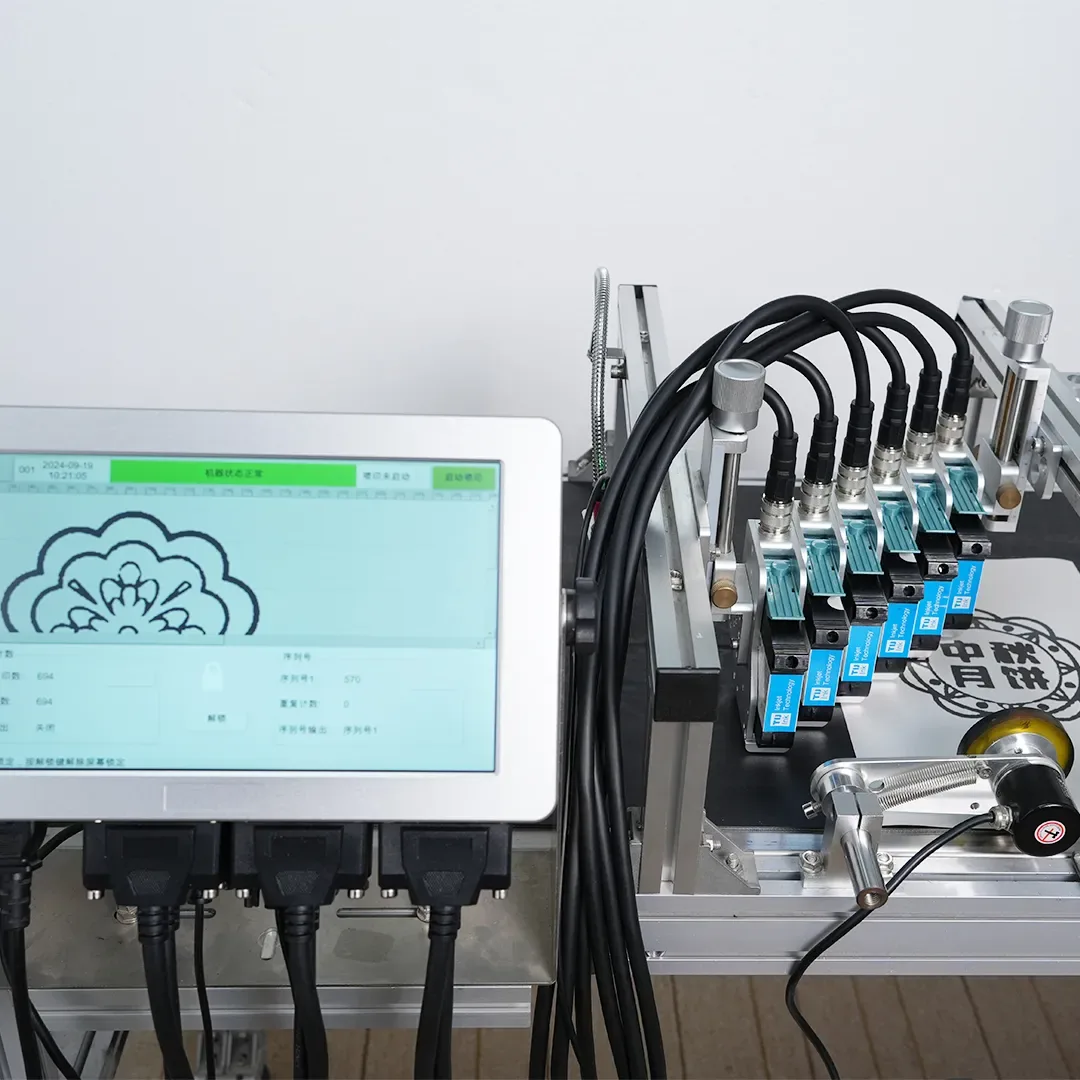

T690 One-Inch Six-Nozzle Inkjet Printer
A high-performance six-nozzle thermal inkjet printer designed for fast production lines, precision GS1 DataMatrix coding, real-time cost calculation, and flexible multi-head configurations.
Model features
- Six-Nozzle, One-Inch Print Height for high-coverage applications
- Up to 120 m/min Print Speed to match fast production environments
- GS1 DataMatrix & Variable Coding for global traceability compliance
- Real-Time Cost Calculation using an intelligent drop consumption algorithm
- Remote Network Management enabling centralized control across production lines
- Wireless Keyboard & Mouse for easy on-site operation
- Independent Printhead Design allowing flexible installation and multiple splicing options
Technical specifications
Printing parameters
- Print resolution
- Up to 300 × 300 DPI
- Number of printheads
- 1/2/3/4/5/6 options
- Print height
- 1–152.4mm
- Maximum print speed
- Up to 120 m/min
- Cartridge chip
- RFID non-contact chip, automatically identifies ink parameters and records ink remaining amount
- Available ink colours
- black, white, red, yellow, blue, green, invisible (UV-fluorescent), UV-curable
- Compatible ink types
- 42 ml cartridges; water-, oil- and mild-solvent-based inks. Special inks for food-packaging applications are available; compliance must be confirmed against the specific ink datasheet. Continuous ink supply is available.
- Supported print content
- Multi-language, GS1 code, dynamic trace-ability QR codes, barcodes, graphics, serial numbers, dates, shifts, counters, variable databases, etc.
- Printable materials
- carton and paper, plastic, metal and sheet materials, pipes, stone, wires and cables, electronic components, automotive components, industrial chemical packaging, pharmaceutical packaging, food packaging, gift packaging.
Equipment and connectivity
- Operating system
- Embedded Linux operating system
- Communication interfaces
- Optical sensor, encoder, alarm control output, printhead connection port, printing information selection
- Printhead
- Separate printhead installation, various splicing combinations
- Power supply
- 110–230 Volts AC, 50–60Hz input
- Enclosure material
- Industrial grade standard protective body (aerospace grade aluminum, industrial grade stainless steel)
- Operating environment
- Temperature 0–45°C / Humidity 30–70% Rh
- Hardware platform
- American TIAM3358 industrial grade CPU, USA Xilinx Spant6 industrial grade FPGA, TIJ dedicated ASIC chip
- Dimensions
- Controller: 274 × 165.4 × 88 mm; 6 Printhead: 168 × 113 × 163 mm
- Interface languages
- Supports more than 40 national and regional languages (Chinese/English/Arabic/Russian/French/Vietnamese/Korean, etc.)
