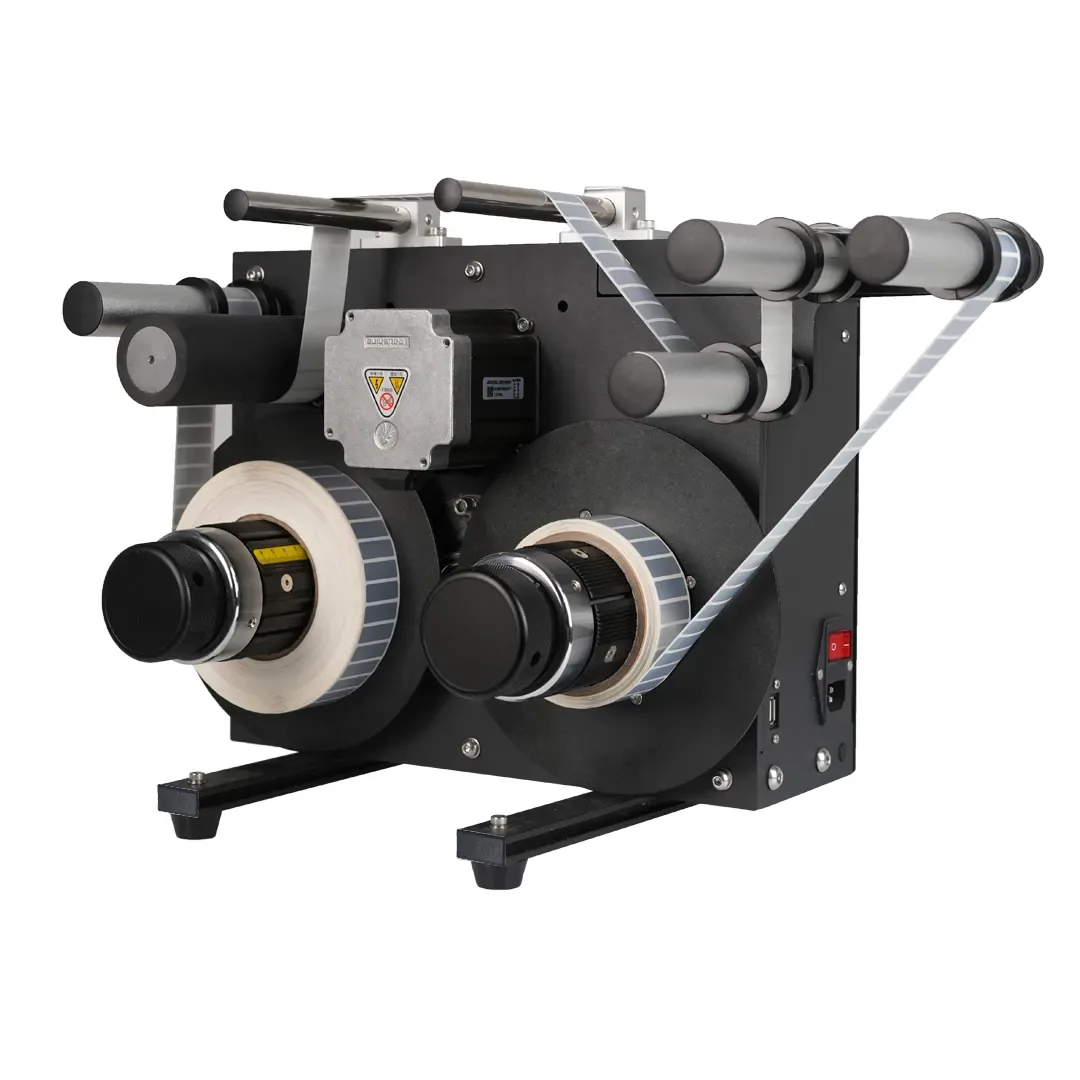

XF20 Vertical Rewinding Machine
Designed for secondary winding of roll labels, ensuring tight coils and high efficiency
Model features
- Stable secondary winding of whole-roll labels
- Continuous operation with adjustable magnetic control
- Prevents label loosening, ensures tight winding
- Integrates with TIJ, laser, TTO marking systems
- Prints numbers, barcodes, traceability codes
- Robust aluminum/cold-rolled steel build
Technical specifications
Equipment and connectivity
- Control system
- Mitsubishi PLC
- Interface languages
- Chinese, English
- Communication interfaces
- USB
- Enclosure material
- Aluminum Profile / Cold-rolled Steel
- External inputs and outputs
- encoder
- Operating environment
- Temperature 0–40°C
- Speed adjustment range
- 0–30 m/min
Printing parameters
- Maximum load
- 2 kg
- Maximum roll diameter
- 200 mm
- Power consumption
- 400 W
- Maximum label width
- 100 mm
- Roll core diameter
- 76 mm
- Maximum machine dimensions
- 530.5 × 334 × 600 mm
- Net weight
- 26.2 kg
- Power supply
- 110V/220V (50Hz/60Hz)
