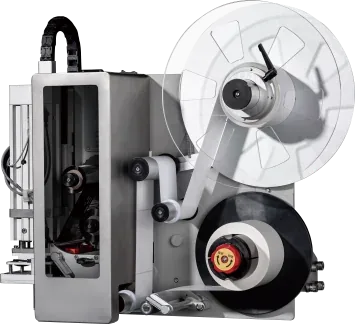

iDPRT PA431L
Industrial print-and-apply system for Tamp and Tamp Blow label application.
Model features
- Direct thermal and thermal-transfer printing.
- Supports 1D and 2D codes.
- Designed for continuous 24/7 printing.
Technical specifications
Verified by technical document
- Printing method
- direct thermal / thermal transfer
- Print resolution
- 300 dpi
- Maximum print width
- 105.6 mm
- Maximum print length
- 1548 mm
- Maximum print speed
- 8 ips (about 203 mm/s)
- Application method
- Tamp / Tamp Blow
- Labeling speed
- up to 30 labels/min
- Labeling accuracy
- within ±1 mm
- Label width
- up to 108 mm
- Maximum label-roll diameter
- 305 mm
- Memory
- 512 MB RAM / 256 MB Flash
- Display
- 3.5-inch touchscreen
- Communication interfaces
- 2×USB 2.0, RS232, I/O, Ethernet, USB Host
- Operating environment
- 5–40 °C; 20–85% RH non-condensing
- Power input
- 100–240 V AC, 50–60 Hz
