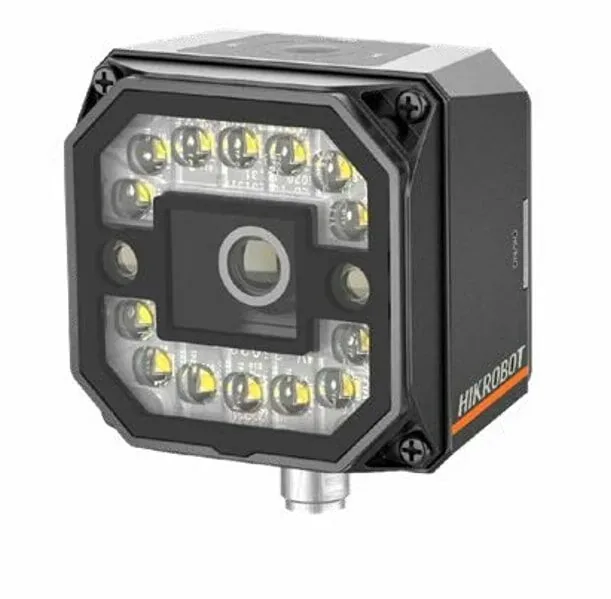

HIKROBOT MV-ID3013PM-06M-SENSOTEC
Industrial Data Matrix, QR and barcode reader for item-level coding and grouped packaging.
Technical specifications
Verified by technical document
- Sensor resolution
- 1280 × 1024 pixels
- Reading rate
- up to 84 codes/s
- Minimum exposure
- from 16 µs
- Permitted object speed
- up to 3 m/s
- Network interface
- Fast Ethernet
- Supported protocols
- SmartSDK, TCP Client/Server, UDP, Serial, FTP, HTTP, PROFINET, Ethernet/IP, MELSEC and ModBus
- Connection
- single cable: power, 3 inputs, 3 outputs, Ethernet and RS232
- Illumination
- integrated controllable red illumination, 14 LED
- Lens
- autofocus, 6 mm focal length
- Optical filter
- 100% polarisation
- Ingress protection
- IP67
Capabilities
- Recognition of label codes and DPM codes on different surfaces.
- Integrated deep-learning algorithm for damaged and low-contrast codes.
- Multiple readers can be grouped to expand the inspection zone.
- Power, network, operating-state and read-result indicators.
Package contents
- MV-ID3013PM-06M-SENSOTEC reader.
- 5 m cable, filter, mounting plate and bolts.
